Air Hose Reel (Carbon Steel Body)
AIR HOSE REELS FOR COMPRESSED AIR, SERIES 2000 (ENCLOSED MODELS) & SERIES 3000 (STAND MODELS)
This series includes a range of enclosed hose reels & stand hose reels designed to be used in those sectors that due to environmental conditions, technical or aesthetic reasons require enclosed hose reel application.
Automatic rewind, spring-driven hose reel, with sheet metal enclosure and pivoting wall bracket, suitable for the use with compressed air and water (temperature range : 10℃ -+60℃) and for hoses of sizes see page no. 12345 with max. Length of 15 m. Inlet connection air : ¼" BSP. Max working pressure: 20 bar.
Applications :
- General Industrial Applications Like Fabrication Shop for Grinders.
- Vehicle Assembly Line.
- Manufacturing Plants & Facilities where Pneumatic tools are using.
- Maintenance, Repair & Garage workshop.
- Automobiles, Electronics Industry, Transformers Manufacturers and many more…
Design, Structure & Specification :
- Steel Brackets & Dual Stand hose reel with space saving design facilitates workplace organization.
- Suitable & easy to install at wall, floor, vehicle & Ceiling.
- Closed Type Air Hose Reel with high quality and compact design.
- Easy to Install by 1person/1self due to its light weight.
- Suitable for wide range of uses. (Optional 180º Swivel bracket for left and right Rotation).
- Excellent durability install with strong and high quality coil spring.
- Special spring made of SS, Moulded & metalic ratchet.
- Multi-position lock ratchet mechanism secures hose at desired length.
- Colour : Powder Coating as Std - Blue Colour ( Available in other colour as per customer requirements)
Benefits :
- This Closed Model hose reels designed to be used in those industry that due to environmental conditions, technical reasons require closed hose reel application.
- With the Spring Rewind hose reel, hose rewinding is quick and safe, for a clean workplace. This protects against wear and possible damages of the hoses.
- User will able to work in a clean and tidy place with all safety.
|
Available Hose reel Tube specifications |
||||||
|
Tube Size |
Tube Material |
Tube Length(MTR) |
Maximum W/Pressure |
Maximum Temperature |
Rewind Type |
Suitable to Installation |
|
ID ø5 - ø12 |
Poly-Urethane |
4.5MTR-30 MTR |
10㎏f/㎠ |
40ºC |
Spring |
Wall, Ceiling,Floor |
|
PU -Braided |
20㎏f/㎠ |
60ºC |
||||

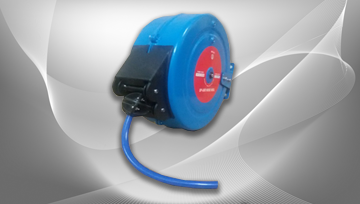

Series 2000 (Enclosed Models)
|
Product Code |
HOSE SIZE |
MAX. TUBE LENGTH |
MAX PRESSURE |
MOUNTING OPTION |
MOC |
||
|
ID MM |
OD MM |
HOOK |
CEILING |
||||
|
5.5 |
8 |
8 MTR |
10 KG |
YES |
YES |
C.S |
|
|
SP-2AHR-2445 |
5.5 |
8 |
15 MTR |
10 KG |
YES |
YES |
C.S |
|
SP-2AHR-2450 |
5.5 |
8 |
20 MTR |
10 KG |
YES |
YES |
C.S |
|
SP-2AHR-2455 |
5.5 |
8 |
25 MTR |
10 KG |
YES |
YES |
C.S |
|
SP-2AHR-2460 |
8 |
12 |
4.5 MTR |
10 KG |
YES |
YES |
C.S |
|
SP-2AHR-2465 |
8 |
12 |
8 MTR |
10 KG |
YES |
YES |
C.S |
|
SP-2AHR-2470 |
8 |
12 |
10 MTR |
10 KG |
YES |
YES |
C.S |
|
SP-2AHR-2475 |
8 |
12 |
15 MTR |
10 KG |
YES |
YES |
C.S |
|
SP-2AHR-2480 |
8 |
12 |
20 MTR |
10 KG |
YES |
YES |
C.S |
|
SP-2AHR-2485 |
8 |
12 |
25 MTR |
10 KG |
YES |
YES |
C.S |
|
SP-2AHR-2585 |
10 |
14 |
10 MTR |
08 KG |
YES |
YES |
C.S |
|
SP-2AHR-2590 |
10 |
14 |
15 MTR |
08 KG |
YES |
YES |
C.S |
|
SP-2AHR-2595 |
10 |
14 |
20 MTR |
08 KG |
YES |
YES |
C.S |
|
SP-2AHR-2600 |
12 |
16 |
10 MTR |
8 KG |
YES |
YES |
C.S |

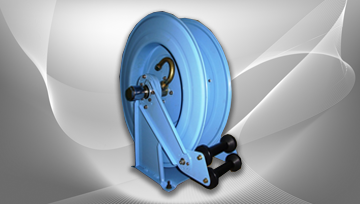

Series 3000 (Stand Models)
|
Product Code |
HOSE SIZE |
MAX. TUBE LENGTH |
MAX PRESSURE |
MOUNTING OPTION |
MOC |
||
|
ID MM |
OD MM |
HOOK |
CEILING |
||||
|
SP-3AHR-2390 |
5.5 |
8 |
25 MTR |
10 KG |
YES |
YES |
C.S |
|
SP-3AHR-2395 |
8 |
12 |
15 MTR |
10 KG |
YES |
YES |
C.S |
|
SP-3AHR-2400 |
8 |
12 |
20 MTR |
10 KG |
YES |
YES |
C.S |
|
SP-3AHR-2405 |
8 |
12 |
25 MTR |
10 KG |
YES |
YES |
C.S |
|
SP-3AHR-2410 |
10 |
14 |
10 MTR |
08 KG |
YES |
YES |
C.S |
|
SP-3AHR-2415 |
10 |
14 |
15 MTR |
08 KG |
YES |
YES |
C.S |
|
SP-3AHR-2420 |
10 |
14 |
20 MTR |
08 KG |
YES |
YES |
C.S |
|
SP-3AHR-2425 |
12 |
16 |
10 MTR |
8 KG |
YES |
YES |
C.S |
|
SP-3AHR-2430 |
12 |
16 |
15 MTR |
8 KG |
YES |
YES |
C.S |
|
SP-3AHR-2435 |
12 |
16 |
20 MTR |
8 KG |
YES |
YES |
C.S |
