Petrol Flow Meters

(Made in Italy & Marketing by S.P. AIR TOOLS PVT. LTD.)
Petrol-flow-meter-3867-3868

Model no. 3867 / 3868
Mechanical nutating – disk flow meter for petrol, kerosene and diesel, with 3 (Model no. 3867) or 4 (Model no. 3868) - digits partial meter (max. 9999 l; resettable to zero) and 8 – digits totalize (non resettable). The meter can easily be calibrated and it can also be used for gravity applications. The upper part can be rotated so that different flow directions are possible. The flow meter is constructed in accordance with directive ATEX 99/95/EC – IECEx (group II – category 2 – G IIB T6) and so is suitable also for the use in environments with a high explosion risk.



MODEL NO. FLOW RANGE MAX WORKING PRESSURE BURST PRESSURE ACCURACY* RESOLUTION CONNECTION THREADS WEIGHT
3867 20 - 120 L /MIN 3.5 BAR 28 BAR +/- 1% 0.01 L 1" BSP (F) 0.6 KG
3868

*Accuracy in % of flow range after calibration

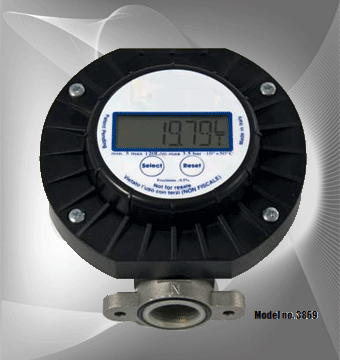

Petrol-flow-meter-3869



Model no. 3869
Electronic alternate – compact disk flow meter for petrol, body in aluminium, with 6 – digits biased meter (resettable to zero) and 6 – digits totalize (non resettable). The meter includes also a flow rate pointer. The upper part can be rotated so that 4 different flow directions are possible.



MODEL NO. FLOW RANGE MAX WORKING PRESSURE BURST PRESSURE ACCURACY* RESOLUTION CONNECTION THREADS WEIGHT
3869 5 - 120 L /MIN 3.5 BAR 28 BAR +/- 0.5% 0.01 L 1" BSP (F) 1.1 KG

*Accuracy in % of flow range after calibration

request-quote
