Pneumatic And Electric Petrol Pumps
(Made in Italy & Marketing by S.P. AIR TOOLS PVT. LTD.)
Model no. 7561
Pneumatic, self priming rotary vane pump for the transmit of petrol, with body in emit iron with anticorrosive coating and plastic rotor. Earth cable to allow an electrostatic release on demand. The pump is build in accordance with directive ATEX 94/9/EC.
| MODEL NO. | COMPRESSED AIR SUPPLY | MAX OUTLET PRESSURE | MAX DELIVERY | CONNECTION THREADS | WEIGHT | DIMENSIONS |
| 7561 | 1-4 BAR | 40 BAR | 35 L / MIN | 3/4" BSP (F) | 3 KG | 140 X150 190 |

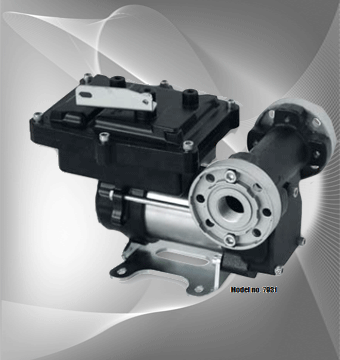

Model no. 7931
Electric, selfpriming 12 VDC – rotary vane pump (on demand also available in 230 VAC) for the transfer of petrol, with painted body in cast iron with anticorrosive coating, anti-noise filter (electromagnetic compatibility EMC), thermal protection, non-return valve, pressure relief valve, built in bypass valve and 2 m – cable with alligator clamps for battery connection. The pump is constructed in accordance with directive ATEX 94/9/EC – IECEx (group II – category 2 – G Ex d IIA T4 Gb).
| MODEL NO. | VOLTAGE | POWER | CURRENT DRAIN | DELIVERY | CONNECTION THREADS | WEIGHT | DIMENSIONS |
| 7931 | 12 VDC | 250 W | 50 L/MIN | 21 A | 1" BSP (F) | 7 KG | 140 X150 190 MIN |
