Diesel Gun

(Made in Italy & Marketing by S.P. AIR TOOLS PVT. LTD.)

Model no. 7700
Manual diesel gun, bodywork in aluminium, with plastic hose end Ø25 mm and supply outlet with Ø ext. 25 mm, with latch for locking of trigger. Max flow rate 80/min.
The nozzle can also be used for the dispensing of tools with a max. Pressure of 3.5 bar.
Model no. 7701
Same as model no. 7700, but with inlet swivel 1” bsp (M-F).



diesel-gun-7702



Model no. 7702
Manual diesel gun, bodywork in aluminium, with plastic handle protector, with inle swivel 1”BSP (M-F) and dispensing outlet with Ø ext. 25 mm, with latch for locking of trigger. Max flow rate 150/min.



diesel-gun-7725

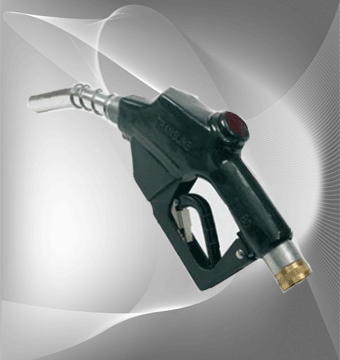

Model no. 7725
Automatic diesel gun, bodywork in aluminium with rubber protection, with inlet swivel 1” BSP (M-F) and supply outlet with Ø ext. 24 mm. Max flow rate 60 l/min.

Model no. 7726 Automatic diesel gun, bodywork in aluminium with rubber protection, with inlet swivel 1” BSP (M-F) and supply outlet with Ø ext. 29 mm. Max flow rate 120 l/min.
