Digital Grease Flow Meters
(Made in Italy & Marketing by S.P. AIR TOOLS PVT. LTD.)
Digital grease flow meters base on the oval gears compute standard. The grease flow meters are mechanism equipped with an electronic factor that allow by the use of a sensor to calculate the flow of grease transitory through it and transmit then a signal on a liquid crystal put on view. The use of this instrument is suitable in all grease supply systems and allows the user to control and to measure the grease flow. Not standard for legal transactions.

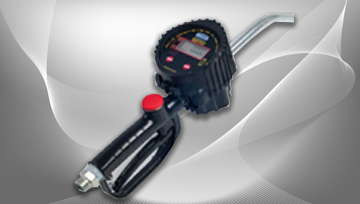

Model no. 5236
Digital oval gears grease flow meter, with preset function of the desired grease quantity to be supplied. With grease control gun, rigid outlet pipe and hydraulic 4 – jaws – coupler.
The preset function introduces a certain degree of automation since it becomes possible to predetermine the dosages and to stop the grease flow automatically once the preselected value has been reached.
The calibration of the meter can also be made by the user.
|
MODEL NO. |
5236 |
|
CONNECTIONS |
1/4" BSP (M) |
|
DELIVERY MIN - MAX |
0.10 - 2 KG / MIN |
|
TEMPERATURE |
+2 ̊ C / + 50 ̊C |
|
MAX PRESSURE |
300 BAR |
|
PRECISION |
+/-0.5% * |
|
LOWEST PRESELECTION VALUE |
0.010 KG |
|
TOTAL MAX (RESETTABLE) |
999.9 KG |
|
TOTAL MAX (NON RESETTABLE) |
9999 KG |
|
WEIGHT |
1.7 KG |
Model no. 5285
Digital oval gears grease flow meter, with grease control gun and stiff outlet pipe, for the measurement of regular quantities in grease transfer applications at comparatively low pressure.
The calibration of the meter can also be made by the user.
|
MODEL NO. |
5285 |
|
CONNECTIONS |
1/2" BSP (M) |
|
DELIVERY MIN - MAX |
0.05 - 8 KG / MIN |
|
TEMPERATURE |
+2 ̊ C / + 50 ̊C |
|
MAX PRESSURE |
70 BAR |
|
PRECISION |
+/-1% * |
|
TOTAL MAX (RESETTABLE) |
999.9 KG |
|
TOTAL MAX (NON RESETTABLE) |
9999 KG |
|
WEIGHT |
1.4 KG |
