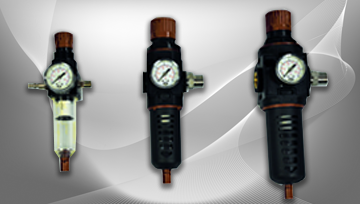

Filter Regulator Lubricator (FRL)
Specification :
- Operating Fluid: Air
- Filtration Grade: Medium Filter
Features :
- Highly efficient in eliminating water and distant particles from compressed air system
- Benchmark 5 Micron filter element ensure maximum water and particle removal
|
PART NO. |
TUBE ID (MM) |
TUBE OD (MM) |
STANDARD LENGTH (MTRS. / ROLL) |
WORKING PRESSURE KG/CM2 |
|
PUT-254 |
2.5 |
4 |
100 |
13 |
|
PUT-24 |
2 |
4 |
100 |
15 |
|
PUT-46 |
4 |
6 |
100 |
15 |
|
PUT-558 |
5.5 |
8 |
50/100 |
20 |
|
PUT-58 |
5 |
8 |
50/100 |
22 |
|
PUT-68 |
6 |
8 |
50/100 |
15 |
|
PUT-710 |
7 |
10 |
50/100 |
22 |
|
PUT-6510 |
6.5 |
10 |
50/100 |
22 |
|
PUT-810 |
8 |
10 |
50/100 |
15 |
|
PUT-811 |
8 |
11 |
50/100 |
22 |
|
PUT-912 |
9 |
12 |
50/100 |
22 |
|
PUT-1012 |
10 |
12 |
50/100 |
15 |
|
PUT-812 |
8 |
12 |
50/100 |
26 |
|
PUT-9514 |
9.5 |
14 |
50/100 |
26 |
|
PUT-1611 |
16 |
11 |
50/100 |
26 |
|
PUT-1014 |
10 |
14 |
50/100 |
26 |
|
PUT-1216 |
12 |
16 |
50/100 |
26 |
- High-Quality Polycarbonate bowl is suitable for vital environment
- Air pressure can be simply adjusted with highly effective pressure regulating Nob
- Lubricating oil flow can be adjusted as desired to ensure good lubrication to machines
- Every component is processed through stringent quality standards to produce high-quality products combined with exceptional performance
|
MODEL NO. |
FRL SIZE |
FRL MAKE AVAILABLE |
|
SP-FRL-14 |
1/4" |
LEGRIS, JANATIC, FESTO |
|
SP-FRL-12 |
1/2" |
LEGRIS, JANATIC, FESTO |
|
SP-FRL-1 |
1" |
LEGRIS, JANATIC, FESTO |

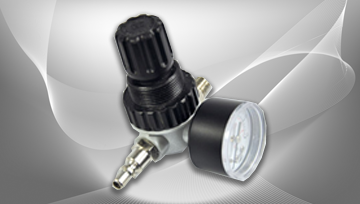

Model No. SPR- 8200
Compressed air pressure regulator with manometer, air nipple ¼" BSP (M) for hose connection and connection adapter ¼" BSP (M-M) for the installation at the compressed air inlet of the pump.
Regulation range: 0-8 bar.
Model No. SPFR- 8180 – 8180/38 - 7180/12
Joint compressed air pressure regulator with manometer and air filter with mechanical bleeding, with lockable regulating screw, air nipple for hose connection and connection adapter for the installation at the compressed air inlet of the pump.
|
MODEL NO. |
SPFR-8180 |
SPFR-8180/38 |
SPFR-8180/12 |
|
Connection threads |
1/4" BSP (M) |
3/8" BSP (M) |
1/2" BSP (M) |
|
Filtration degree (microns) |
20 |
20 |
20 |
|
Regulation range |
0-8 bar |
0-8 bar |
0-8 bar |
|
Max air flow (l/min) |
850 |
1650 |
2310 |
|
Collection capacity condensate (cm3) |
22 cc |
55 cc |
100 cc |
|
Temperature range (0C) |
5 - 50 ̊ C |
5 - 50 ̊ C |
5 - 50 ̊ C |
|
Dimensions (LxWxH) (mm) |
42x42x198 |
75x63x276 |
75x63x276 |

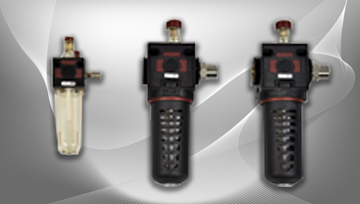

Model No. SPL- 8151 – 8151/38 - 8151/12
Air line lubricator, providing a proportional oil steam enables a precise regulation of the lubricating oil even at low pressure. With adjustment screw and connection adapter for the installation at the compressed air inlet of the pump.
|
MODEL NO. |
SPL-8151 |
SPL-8151/38 |
SPL-8151/12 |
|
Connection threads |
1/4" BSP (M) |
3/8" BSP (M) |
1/2" BSP (M) |
|
Max working pressure |
8 bar |
8 bar |
8 bar |
|
Max air flow (l/min) |
850 |
1650 |
2310 |
|
Capacity Lubricator (cm3) |
42 cc |
76 cc |
132 cc |
|
Temperature range (0C) |
5 - 50 ̊ C |
5 - 50 ̊ C |
5 - 50 ̊ C |
|
Dimensions (LxWxH) (mm) |
42x42x157 |
75x63x232 |
75x63x232 |
Model No. SPFRL- 8150 – 8150/38 - 8150/12
Combined compressed air treatment kit, composed of pressure regulator with manometer, air filter with automatic bleeding, air line oil mist lubricator, lockable regulating screw, air nipple for hose connection and connection adapter for the installation at the compressed air inlet of the pump.
See technical date in the description of its components (model no. 8180 – 8180/38 – 8180/12 and model no. 8151 – 8151/38 / 8151/12)
