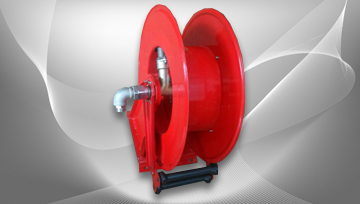

Heavy Duty Series Autorewind Hose Reel MS
SP Make Heavy Duty Series Hose Reels Drum Type, designed in painted or in Stainless Steel (304), with high quality of coil spring to rewind the hose. The full flow shaft and swivel rotary to maximize fluid flow with minimum pressure drop for faster fills. Multi-Position lock ratchet secures hose at desired length.
The hose reel is supplied without hoses. Hoses can be used for the supply of oils, grease, diesel, compressed air and water.
On demand the required hoses are also available.
|
MODEL NO FOR SPRING REWIND |
HOSE SIZE & LENGTH |
CONNECTION THREADS IN-OUT |
MAX WORKING PRESSURE |
WEIGHT |
DIMENSIONS (LXWXH) (MM) |
||
|
ID |
OD |
LENGTH |
|||||
|
HDR-3410 |
3/4" |
|
10 |
1"(M) - 1" (F) |
100 BAR |
24 KG |
|
|
HDR-3415 |
3/4" |
|
15 |
1"(M) - 1" (F) |
100 BAR |
26 KG |
|
|
HDR-3420 |
3/4" |
|
20 |
1"(M) - 1" (F) |
100 BAR |
27 KG |
270X590X600 |
|
HDR-3425 |
3/4" |
|
25 |
1"(M) - 1" (F) |
100 BAR |
30 KG |
320X590X700 |
|
HDR-0105 |
1" |
|
5 |
1"(M) - 1" (F) |
100 BAR |
22 KG |
|
|
HDR-0110 |
1" |
|
10 |
1"(M) - 1" (F) |
100 BAR |
24 KG |
|
|
HDR-0115 |
1" |
|
15 |
1"(M) - 1" (F) |
100 BAR |
26 KG |
270X590X600 |
|
HDR-0120 |
1" |
|
20 |
1"(M) - 1" (F) |
100 BAR |
27 KG |
460X590X700 |
|
HDR-0125 |
1" |
|
25 |
1"(M) - 1" (F) |
100 BAR |
30 KG |
|
|
HDR-11410 |
1.1/4" |
|
10 |
1.1/4"(M) - 1.1/4"(F) |
20 BAR |
25 KG |
330X650X600 |
