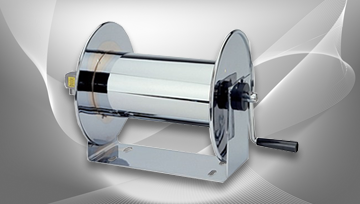

Heavy Duty Series Manual Hose Reel SS304
SP Make Heavy Duty Series Manual Hose Reels Drum Type, designed in painted or in Stainless Steel (304), suitable for hoses of max 100 meter length in ¼” or max 6 meter length in 2”.
|
MODEL NO FOR SPRING REWIND |
HOSE SIZE & LENGTH |
CONNECTION THREADS IN-OUT |
MAX WORKING PRESSURE |
WEIGHT |
DIMENSIONS (LXWXH) (MM) |
||
|
ID |
OD |
LENGTH |
|||||
|
HDR-M-1450 SS |
1/4" |
|
50 |
1/2" (M) - 1/2" (F) |
600 BAR |
9 KG |
280X530X480 |
|
HDR-M-1470 SS |
1/4" |
|
70 |
1/2" (M) - 1/2" (F) |
600 BAR |
12 KG |
320X530X480 |
|
HDR-M-14120 SS |
1/4" |
|
120 |
1/2" (M) - 1/2" (F) |
600 BAR |
14 KG |
|
|
HDR-M-3830 SS |
3/8" |
|
30 |
1/2" (M) - 1/2" (F) |
600 BAR |
9 KG |
280X530X480 |
|
HDR-M-3850 SS |
3/8" |
|
50 |
1/2" (M) - 1/2" (F) |
600 BAR |
12 KG |
320X530X480 |
|
HDR-M-3870 SS |
3/8" |
|
70 |
1/2" (M) - 1/2" (F) |
600 BAR |
12 KG |
320X530X480 |
|
HDR-M-1230 SS |
1/2" |
|
30 |
1/2" (M) - 1/2" (F) |
600 BAR |
12 KG |
320X530X480 |
|
HDR-M-1250 SS |
1/2" |
|
50 |
1/2" (M) - 1/2" (F) |
600 BAR |
12 KG |
320X530X480 |
|
HDR-M-1270 SS |
1/2" |
|
70 |
1/2" (M) - 1/2" (F) |
600 BAR |
14 KG |
|
|
HDR-M-3410 SS |
3/4" |
|
10 |
1" (M) - 1" (M) |
100 BAR |
10 KG |
|
|
HDR-M-3415 SS |
3/4" |
|
15 |
1" (M) - 1" (M) |
100 BAR |
12 KG |
320X530X480 |
|
HDR-M-3420 SS |
3/4" |
|
20 |
1" (M) - 1" (M) |
100 BAR |
14 KG |
|
|
HDR-M-3425 SS |
3/4" |
|
25 |
1" (M) - 1" (M) |
100 BAR |
15 KG |
480X530X480 |
|
HDR-M-3430 SS |
3/4" |
|
30 |
1" (M) - 1" (M) |
100 BAR |
18 KG |
|
|
HDR-M-3450 SS |
3/4" |
|
50 |
1" (M) - 1" (M) |
100 BAR |
21 KG |
|
|
HDR-M-0110 SS |
1" |
|
10 |
1" (M) - 1" (M) |
100 BAR |
12 KG |
320X530X480 |
|
HDR-M-0115 SS |
1" |
|
15 |
1" (M) - 1" (M) |
100 BAR |
14 KG |
|
|
HDR-M-0120 SS |
1" |
|
20 |
1" (M) - 1" (M) |
100 BAR |
15 KG |
480X530X480 |
|
HDR-M-0125 SS |
1" |
|
25 |
1" (M) - 1" (M) |
100 BAR |
17 KG |
|
|
HDR-M-0130 SS |
1" |
|
30 |
1" (M) - 1" (M) |
100 BAR |
17 KG |
|
|
HDR-M-0150 SS |
1" |
|
50 |
1" (M) - 1" (M) |
100 BAR |
22 KG |
|
|
HDR-M-11210 SS |
1.1/2" |
|
10 |
|
|
|
|
|
HDR-M-0210 SS |
2" |
|
10 |
|
|
|
|
