Pneumatic And Electric Oil Pumps
(Made in Italy & Marketing by S.P. AIR TOOLS PVT. LTD.)
SP have portable pneumatic and electric pumps, suitable for the transfer of small fluid quantities.
Pneumatic rotary gears pump for the transfer of hydraulic low viscosity oil, antifreeze, diesel, water.
Pump body in brass (mod. no. 7559) or in stainless steel (mod. no. 2058), gears in bronze, seals in Viton and pump shaft in stainless steel.
|
MODEL NO. |
COMPRESSED AIR SUPPLY |
OUTLET PRESSURE |
DELIVERY |
CONNECTIONS |
WEIGHT |
DIMENSIONS (LXWXH) (MM) |
|
7559 |
4 BAR |
4 BAR |
10.5 L/MIN |
3/8" BSP (F) |
1.5 KG |
165X160X80 |
|
2058 |
4 BAR |
4 BAR |
10.5 L/MIN |
3/8" BSP (F) |
1.5 KG |
165X160X80 |

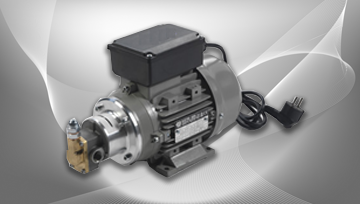

Electric gear pump, self-priming, protection category IP 55, for the supply of oil, antifreeze, diesel, water at medium pressure; guarantees a constant flow and a low noise level.
Pump body in stainless steel, gears in bronze and pump shaft in stainless steel.
Includes a bypass valve preset on 15 bar pressure and 1.5 m – electric cable with plug.
|
MODEL NO. |
VOLTAGE |
POWER |
CURRENT DRAIN |
RPM |
OUTLET PRESSURE |
DELIVERY L / MIN |
CONNECTIONS |
WEIGHT |
|
7125 |
110VAC - 60 HZ |
0.55 KW |
3.8 A |
2760 |
15 BAR |
10.5 |
3/8" BSP (F) |
7.5 KG |
|
7122 |
230VAC - 50 HZ |
|||||||
|
7128 |
400VAC - 50 HZ |
|||||||
|
7123 |
230VAC - 50 HZ |
4 BAR |
15 |
1/2" BSP (F) |
7 KG |
