Pneumatic Grease Pumps
(Made in Italy & Marketing by S.P. AIR TOOLS PVT. LTD.)
Pneumatic pumps for the dispensing of grease at short and medium distances or for high pressure lubrication. (50:1 Compression ratio)
|
MODEL NO. |

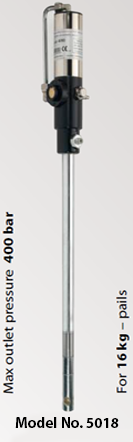

5018 |

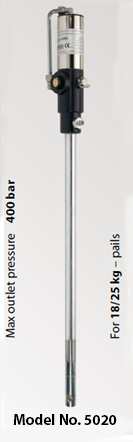

5020 |

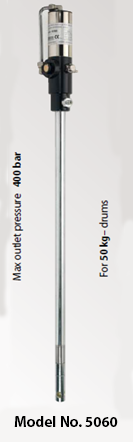

5060 |

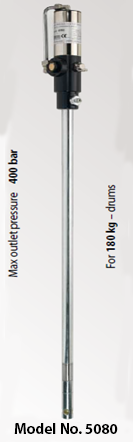

5080 |
|
COMPRESSED AIR SUPPLY |
PRESSURE MIN 2 - MAX 8 BAR |
|||
|
COMPRESSION RATION |
50:1 |
|||
|
OUTLET PRESSURE |
400 BAR |
|||
|
DELIVERY |
2900 G/MIN |
|||
|
CONNECTION COMPRESSED AIR |
1/4" BSP (F) |
|||
|
CONNECTION LUBRICANT OUTLET |
1/4" BSP (M) |
|||
|
MAX AIR CONSUMPTION WITH 8 BAR PRESSURE |
78 L/MIN |
|||
|
LENGTH SUCTION TUBE |
335 MM |
450 MM |
750 MM |
950 MM |
|
DIAMETER SUCTION TUBE |
28 MM |
28 MM |
28 MM |
28 MM |
|
DIMENSIONS LXWXH (MM) |
95X95X690 |
95X95X780 |
95X95X1005 |
95X95X1250 |
|
SUITABLE FOR PAILS / DRUMS OF |
16 KG |
18-25 KG |
50 KG |
180 KG |
|
WEIGHT |
3.8 KG |
4.2 KG |
5 KG |
5.6 KG |
Pneumatic pumps for the dispensing of grease at long distances or for high pressure lubrication. (100:1 Compression ratio)
|
MODEL NO. |

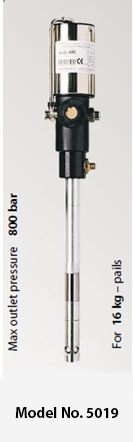

5019 |

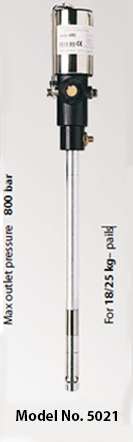

5021 |

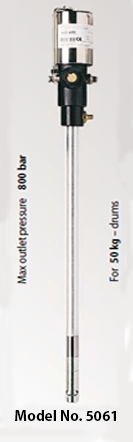

5061 |

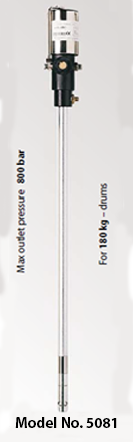

5081 |
|
COMPRESSED AIR SUPPLY |
PRESSURE MIN 2 - MAX 8 BAR |
|||
|
COMPRESSION RATION |
100:1 |
|||
|
OUTLET PRESSURE |
800 BAR |
|||
|
DELIVERY |
2700 G/MIN |
|||
|
CONNECTION COMPRESSED AIR |
1/4" BSP (F) |
|||
|
CONNECTION LUBRICANT OUTLET |
1/4" BSP (M) |
|||
|
MAX AIR CONSUMPTION WITH 8 BAR PRESSURE |
110 L/MIN |
|||
|
LENGTH SUCTION TUBE |
335 MM |
450 MM |
750 MM |
950 MM |
|
DIAMETER SUCTION TUBE |
28 MM |
|||
|
DIMENSIONS LXWXH (MM) |
95X95X690 |
95X95X780 |
95X95X1005 |
95X95X1250 |
|
SUITABLE FOR PAILS / DRUMS OF |
16 KG |
18-25 KG |
50 KG |
180 KG |
|
WEIGHT |
3.8 KG |
4.2 KG |
5 KG |
5.6 KG |
