Pneumatic Grease Supply Kits

(Made in Italy & Marketing by S.P. AIR TOOLS PVT. LTD.)

Complete pneumatic grease supply kit, suitable for any kind of inside or outside use. Max pressure achievable: 400 bar.

Portable pneumatic grease supply kit for 18/25 kg – pails, consisting of:

Pneumatic grease pump, model no. 5020
Pressure regulator, model no. 8200
3 m – high pressure hose SAE 100 R2, ¼"
High pressure grease control gun, 300 mm – steel braid outlet hose dia ext. 10 mm and 4 jaws hydraulic coupler, model no. 5205
High pressure Z-Swivel, model no. 5221

MODEL NO.	MAX OUTLET PRESSURE	DELIVERY	CONNECTION COMPRESSED AIR	COMPRESSED AIR SUPPLY	WEIGHT	DIMENSIONS (LXWXH) (MM)
5960C	400 BAR	2400 G/MIN	1/4" BSP (F)	2 - 8 BAR	15 KG	510 X 690 X 690

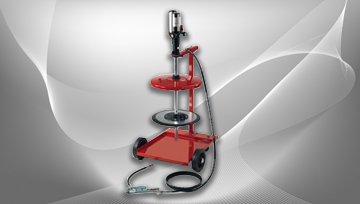

Portable pneumatic grease supply kit for 50 kg – drums, consisting of :

Pneumatic grease pump, model no: 5060
Pressure regulator, model no. 8200
3 m – high pressure hose SAE 100 R2 AT, ¼"
High pressure grease control gun, 300 mm – steel braid outlet hose dia ext. 10 mm abd 4 jaws – hydraulic coupler, model no. 5205
High pressure Z – swivel, model no. 5221
Follower plate, dia 390 – 325 mm
Metal drum cover, dia 400 – 360 mm
Trolley with 4 wheels

MODEL NO.	MAX OUTLET PRESSURE	DELIVERY	CONNECTION COMPRESSED AIR	COMPRESSED AIR SUPPLY	WEIGHT	DIMENSIONS (LXWXH) (MM)
5980C	400 BAR	2400 G/MIN	1/4" BSP (F)	2 - 8 BAR	18 KG	600 X 600 X 1050

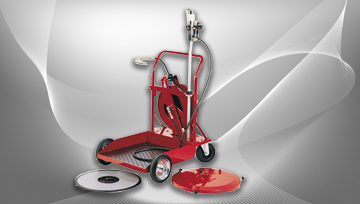

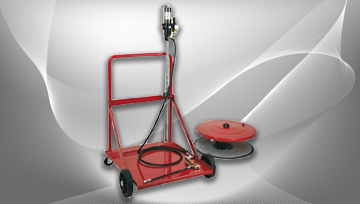

Mobile pneumatic grease supply kit for 180 kg – drums, consisting of:

Pneumatic grease pump, model no. 5080
Pressure regulator and air filter with moisture separator, model no. 8180
3 m – high pressure grease control gun, 300 mm – steel braid outlet hose dia ext. 10 mm and 4 – jaws – hydraulic coupler
High pressure Z – swivel, model no. 5221
Follower plate, dia 590 – 540 mm
Metal drum cover, dia 600 – 560 mm
Trolley with 4 wheels

MODEL NO.	MAX OUTLET PRESSURE	DELIVERY	CONNECTION COMPRESSED AIR	COMPRESSED AIR SUPPLY	WEIGHT	DIMENSIONS (LXWXH) (MM)
5990C	400 BAR	2400 G/MIN	1/4" BSP (F)	2 - 8 BAR	22 KG	900 X 830 X 1400

Mobile pneumatic grease supply kit for 180 kg – drums, consisting of:

Pneumatic grease pump, model no. 5080
Pressure regulator and air filter with moisture separator, model no. 8180
Open hose reel ½"
15 m – high pressure hose SAE 100 R2 AT, ¼"
2 m – connection hose SAE 100 R2 AT, ¼"
High pressure grease control gun, 300 mm – steel braid outlet hose dia ext. 10 mm and 4 jaws – hydraulic coupler, model no. 5205
High pressure Z – swivel, model no. 5221
Follower plate, dia 590 – 540 mm
Metal drum cover, dia 600 – 560 mm
Heavy duty trolley with 4 wheels and grate

MODEL NO.	MAX OUTLET PRESSURE	DELIVERY	CONNECTION COMPRESSED AIR	COMPRESSED AIR SUPPLY	WEIGHT	DIMENSIONS (LXWXH) (MM)
5911	400 BAR	2400 G/MIN	1/4" BSP (F)	2 - 8 BAR	90 KG	900 X 1030 X 1400
