Pulsers

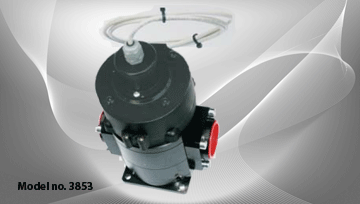

Electronic oval gears flow meter with pulse transmitter, suitable for oil and antifreeze. Appropriate to the use in combination with electronic oil monitoring systems by the use of an external receiver.
|
MODEL NO. |
CONNECTIONS |
MAX FLOW (L / MIN) |
OPERATING TEMPERATURE RANGE |
MAX WORKING PRESSURE (BAR) |
ACCURACY |
NUMBER OF PULSES |
WEIGHT |
|
3954 |
1/2"BSP(F) |
35 |
+5 ̊ C / + 50 ̊ C |
70 |
+ / - 0.5% |
78 /l |
0.6 KG |
Electronic oval gears high delivery flow meter with pulse transmitter, suitable for oil, diesel and antifreeze.
Appropriate to the use in combination with electronic oil monitoring systems by the use of an external receiver.
|
MODEL NO. |
CONNECTIONS |
MAX FLOW (L / MIN) |
OPERATING TEMPERATURE RANGE |
MAX WORKING PRESSURE (BAR) |
ACCURACY |
NUMBER OF PULSES |
WEIGHT |
|
3954 |
1/2"BSP(F) |
70 |
+5 ̊ C / + 50 ̊ C |
70 |
+ / - 0.5% |
39 /l |
1.6 KG |
