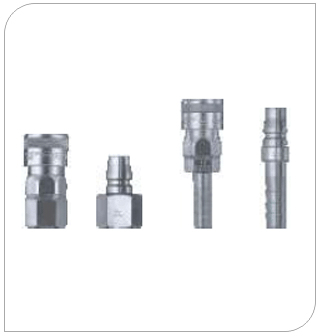

PNEUMATIC / COUPLER / HI-COUPLER |
|
| |
| From factory air line to pneumatic tool connection,available invarious body materials, sizes and connection types. Excellent durability in any anvironment. |
 |
* An excellent pupose coupler for connecting factory air supply to pneumatic tool hose.
* Carbon steel coupler for air and brass or stainless steel coupler for water. Note that fluid will flow out from the plug on disconnection.
* Important structural parts of steel models are hardend for added sterngth.Extremely wear reisitant and durable.
* All mating parts in the coupler are torqoe coated for long life so that they do loosen up during usage.
* Valves is made of SS304 & spring used are of SS302 material.
* All male connections come with teflon pre-coated. |
| |
SPECIFICATIONS
|
| |
| Body Marteri |
CS(Chrome-plated) |
Brass |
SS304/316 |
| Size |
1/4"(20 type),3/8"(30type), 1/2"(40type)
3/4"(600type), 1"(800type) |
| Working Pressure (Kg/cm2) |
15 |
10 |
15 |
| Pressure Resistance (Kg/cm2) |
20 |
15 |
20 |
| Paking Material |
NBR,Viton (optional) |
|
| |
| INTERCHANGEABILITY |
| |
1. Model 20, 30 and 40 have sockets and plugs that can be interchanged regardless of connection type.
2. Model 600 and 800 have sockets and plugs that can be interchanged regardless of connection type.however 1 and 2 cannot be interchanged with each other.
3. Interchangeable with all Hi-Coupler series products. |
| |
| |
| SH SOCKET HOSE |
| |
| Model |
Application |
L (mm) |
D (mm) |
A (mm) |
T (mm) |
Bs (mm) |
| 20SH |
For 1/4" Hose |
72.5 |
26.5 |
30 |
9.0 |
5.0 |
| 30SH |
For 3/8" Hose |
76.5 |
26.5 |
34 |
11.3 |
7.5 |
| 40SH |
For 1/2" Hose |
78.5 |
26.5 |
36 |
15.0 |
9.0 |
| 60SH |
For 3/4" Hose |
92.0 |
35.0 |
45 |
21.0 |
14 |
| 80SH |
For 1" Hose |
1o2.0 |
35.0 |
55 |
27.0 |
16 |
|
|
|
| SM SOCKET MALE |
| |
| Model |
Application |
L (mm) |
D (mm) |
Hex (mm) |
A (mm) |
Bs (mm) |
| 20SM |
Rc1/4" |
55.5 |
26.5 |
Hex 19 |
13.0 |
7 |
| 30SM |
Rc3/8" |
56.5 |
26.5 |
Hex 19 |
14.0 |
8 |
| 40SM |
Rc1/2" |
59.5 |
26.5 |
Hex 24 |
16.0 |
9 |
| 60SM |
Rc3/4" |
67.0 |
35.0 |
Hex 32 |
19.0 |
16 |
| 80SM |
Rc1" |
72.0 |
35.0 |
Hex 36 |
27.0 |
16 |
|
| |
| SF SOCKET FEMALE |
| |
| Model |
Application |
L (mm) |
D (mm) |
Hex (mm) |
A (mm) |
T |
| 20SF |
Rc1/4" |
49.5 |
26.5 |
Hex 19 |
13.0 |
Rc 1/4" |
| 30SF |
Rc3/8" |
50.5 |
26.5 |
Hex 21 |
14.0 |
Rc 3/8" |
| 40SF |
Rc1/2" |
52.5 |
26.5 |
Hex 29 |
16.0 |
Rc 1/2" |
| 60SF |
Rc3/4" |
61.0 |
35.0 |
Hex 35 |
17.0 |
Rc 3/4" |
| 80SF |
Rc1" |
68.0 |
35.0 |
Hex 41 |
22.0 |
Rc 1" |
|
| |
| PH PLUG HOSE |
| |
| Model |
Application |
L (mm) |
A (mm) |
C (mm) |
T (mm) |
Bp (mm) |
| 20PH |
For 1/4" Hose |
57.0 |
30 |
20 |
9.0 |
5.0 |
| 30PH |
For 3/8" Hose |
61.0 |
34 |
20 |
11.3 |
7.5 |
| 40PH |
For 1/2" Hose |
63.0 |
36 |
20 |
15.0 |
7.5 |
| 600PH |
For 3/4" Hose |
77.0 |
45 |
23 |
21.0 |
13.0 |
| 800PH |
For 1 " Hose |
85.0 |
54 |
23 |
27.0 |
20.0 |
|
|
| |
| PM PLUG MALE |
| |
| Model |
Application |
L (mm) |
A (mm) |
Hex (mm) |
C (mm) |
Bp (mm) |
| 20PM |
Rc 1/4" |
41.0 |
13 |
Hex. 14 |
20 |
7.5 |
| 30PM |
Rc 3/8" |
42.0 |
14 |
Hex. 19 |
20 |
7.5 |
| 40PM |
Rc 1/2" |
46.0 |
16 |
Hex. 22 |
20 |
12.0 |
| 600PM |
Rc 3/4" |
55.0 |
18 |
Hex. 32 |
23 |
19.0 |
| 800PM |
Rc 1" |
63.0 |
22 |
Hex. 35 |
23 |
22.00 |
|
| |
| PF PLUG FEMALE |
| |
| Model |
Application |
L (mm) |
A (mm) |
Hex (mm) |
C (mm) |
Bp (mm) |
| 20PF |
Rc 1/4" |
36.0 |
13 |
Hex. 17 |
20 |
7.5 |
| 30PF |
Rc 3/8" |
37.0 |
14 |
Hex. 21 |
20 |
7.5 |
| 40PF |
Rc 1/2" |
38.0 |
15 |
Hex. 29 |
20 |
7.5 |
| 600PF |
Rc 3/4" |
45.0 |
17 |
Hex. 35 |
23 |
13.0 |
| 800PF |
Rc 1" |
54.0 |
22 |
Hex. 41 |
23 |
13.00 |
|
| |
