* Rotary plug for hose connection to pneumatic tools and pneumatic devices.

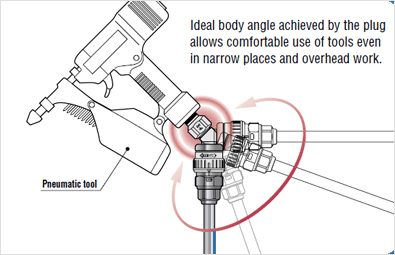

* Fits to the tool at 45* angle and eliminates annoying transfer of house load.
* In pursuit of workability, we achieved a compact design by simplifying the body structure. Now lighter and smaller
than previous models.
* New design in dust-proofed for greater durability.
* For tackers, nailers, impact wrenches and other pneumatic tools. |
|
 |
SPECIFICATIONS
| Body material |
Steel (nickel-plated) |
| Size |
1/4”, 3/8” |
| Working pressure MPa{kgf/cm2} |
1.5{15}/1.0{10} (only RL-02MP.PFF type) |
| Pressure resistance MPa {kgf/cm2} |
2.0{20}/1.5{15} (only RL-02MP.PFF type) |
Packing material
Working temperature range |
Packing Material |
SP Symbol |
Working temp |
Remarks |
| NBR |
SP |
-5*C+60*C |
Standard material |
| |
|
|
|
|
|
| |
 |
| |
For female Thread connection (PM) |
| Product code |
Application |
Mass (g) |
Dimensions (mm) |
| Lp |
D |
T |
| SP - 20PM |
Rc1/4(PT1/4) |
52 |
52.1 |
34.1 |
R1/4 (PT1/4) |
| SP - 30PM |
Rc3/8(PT3/8) |
73 |
50.8 |
32.8 |
R3/8 (PT3/8) |
|
| |
.jpg) |
| |

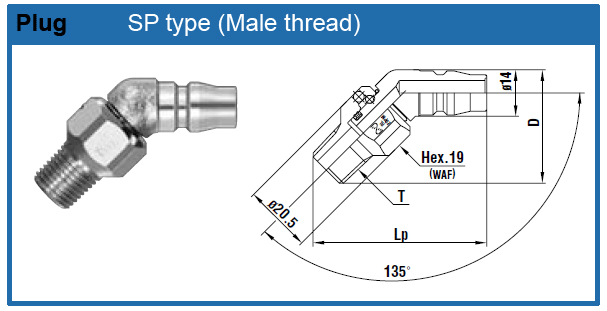

| For male Thread connection (Product code SP - 20PFF) |
| |
 |
| |
