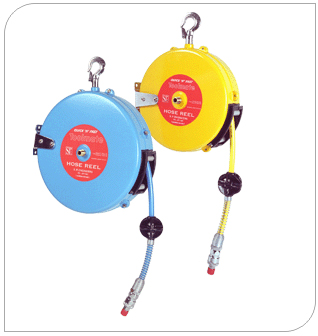

| S.P.Engineers Self Locking Hose Reel Balancer Are Specifically Designed For Light Weight Assembly Tools Where Uncluttered Installation Is A Must. These Air Hose Reel Balancer Provide Simplified Installations & Better Tool Control. Cased In Metallic Housing. The Compressed Air Enters Through An Airtight Joint Providing Pressured Air Through The Tube To The Tool. |
| |
| |
 |
| |
|
| |
MODEL NO. |
BALANCING CAPACITY |
TUBE SIZE |
MAX W/L |
| MIN.KG. |
MAX. KG |
ID MM |
OD MM |
SPAHRB2420 |
0.5 |
1.8 |
8.0 |
12.0 |
3.0 |
SPAHRB2425 |
1.8 |
2.8 |
8.0 |
12.0 |
5.0 |
SPAHRB2430 |
0.5 |
1.8 |
10.0 |
14.0 |
2.0 |
SPAHRB2435 |
1.8 |
2.8 |
10.0 |
14.0 |
3.0 |
|
|
| |
|
|
* Compact Desindning
* Light Weight
* Special Ratchet Locking
* Conventional Hook for Hanging
* Wall Mounting Bracket
* Smooth Function Over Entire Range
* Avoid Uncluttered Installation |
|
| |
APPLICATION
Automobile Engineering, Mining, Pneumatic, Hydraulic, Chemical, Textile, Food, Marine, Aerospace Industreis.
DIMENSIONS
Outlet Connection : 1/4' or 3/8'
Inlet Connection : 1/4" ,or 3/8, 1/2"
COMPONENTS
Case : Metal
Fixing Base : Brass & Stainless Steel. |
| |
|
|
| |
|
