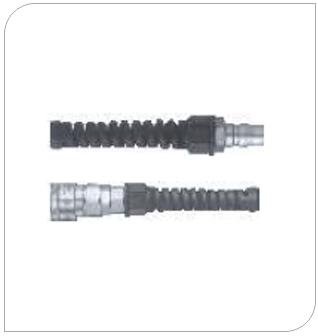

PNEUMATIC / COUPLER / ROTARY NUT COUPLER

Swivel mechanism eliminates hose twisting

*   Swivel mechanism eliminates hose twisting and relieves load on hands.

*   To fit hose, simply slide it over the nipple & tighten the nut.

*   Tightening outside of hose reduces hose slipping or fluid leaking

*   No protuding hose clamp screw to strong when the hose is moved.

SPECIFICATIONS

Body Marteri	Carbon Steel, Chrome Plated
Size	For 08 x 5.5 hose,For 10 x 6.5 hose, For 12 x 8.0 hose
Working Pressure (Kg/cm2)	15
Pressure Resistance (Kg/cm2)	20
WorkingTemperature	- 5°C ~ + 80°C
Paking Material	NBR
Optional	Viton

INTERCHANGEABILITY

Can be connected to Hi-Coupler model 20, 30 and 40. Interchangeable with all Hi- Coupler series products.

Model	Application	L (mm)	A (mm)	D (mm)	Hex (mm)	Hex1(mm)
50SPS	8x5.5Hose	67.3	17	26.5	Hex.19	Hex.17
65SPS	10x6.5Hose	67.3	17	26.5	Hex.19	Hex.17
80SPS	12x8Hose	69.3	19	26.5	Hex.21	Hex.19
