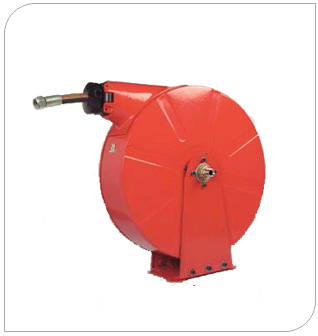

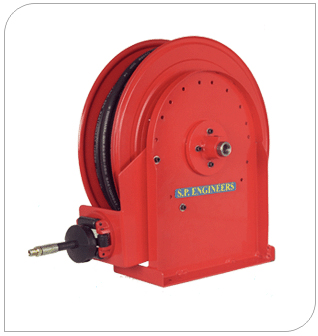

AUTO REWIND HOSE REEL SERIES 3000

This series 3000 Hose reel are mainly used for air,oil, grease,water application. Reels are all steel construction and compact for application with critical space requirements.These reels have auto self winding ratcheting mechanism such that after the completion of work the hose can get rewound by slight pull of hose.
Series 3000 E reels are the same as 3000 reels. Except E series reels. Fully enclose to order the model number suffix letter. O to E Example SP 3440 OHP becomes SP 344o EHP.
APPLICATIONS & MARKETS

* Automotive Service Centers
* Work shop
* Industrial
* Service Trucks
* Pneumatic Tools
* Trasmisssion Shops
* Woodworkisng
* Feet Maintenance Facilities
* Tire Stores
* Farm & Ranch
* Aircraft Maintenance





MODELS WITH HOSE     HOSE CAPACITY MODEL WITHOUT HOSE
MODEL           PRESSURE    I.D   O.D.        LENGTH  MODEL        PRESSURE
psi / bar in / mm mm ft  / mtr   psi /bar
LOW PRESSURE HOSE REELS  Maximum Temperature 150*F(65*C) - Reel 3/8" BSP &  NPT (Female)
SP3310 OLP  275 19 1/4"    6 13.0   50 15 SP3305 OLP 500 35
SP3320 OLP 275 19 1/4"    6 13.0 65 20 SP3315 OLP 500 35
SP3330 OLP 275 19 3/8"  10 16.0 33 10 SP3325 OLP 500 35
SP3340 OLP 275 19 3/8"  10 16.0 50 15 SP3335 OLP 500 35
SP3350 OLP 275 19 1/2"   13   21.0 23 10 SP3345 OLP 500 35
SP3360 OLP 275 19 1/2"   13 21.0 33 15 SP3355 OLP 500 35
Low pressure reel furnished standard with pvc hose
MEDIUM PRESSURE OIL REELS Maximum Temperature 212*F(100*C) - Reel 3/8" OR 1/2" BSP &  NPT (Femal)
SP3370 OMP 400 28 1/4"   6 13.4 23 10 SP3365 OMP 1000 70
SP3380 OMP 400 28 1/4"   6 13.4 33 15 SP3375 OMP 1000 70
SP3390 OMP 400 28 3/8"  10 17.0 23 10 SP3385 OMP 1000 70
SP3400 OMP 400 28 3/8"  10 17.0 33 15 SP3395 OMP 1000 70
SP3410 OMP 400 28    1/2" 12.5 21.0 17 5 SP3405 OMP 1000 70
SP3420 OMP 400 28    1/2"  12.5 21.0 23 7 SP3415 OMP 1000 70
Medium pressure reels furnished with SAE 100 R6 AT one synthetic textile braid.
HIGH PRESSURE GREASE REELS Maximum Temperature 212*F(100*C) - Reel 3/8" OR 1/2" BSP &  NPT (Femal)
SP3430 OHP 5800 400 1/4"     6 13.4 23 7 SP3425 OHP 7250 500
SP3440 OHP 5800 400 1/4"     6 14.4 33 10 SP3435 OHP 7250 500
SP3450 OHP 4750 355 3/8"     10 17.4 23 7 SP3445 OHP 7250 500
SP3460 OHP 4750 355 3/8"    10 17.4 33 10 SP3455 OHP 7250 500
High pressure reels furnished standard with SAE 100 R2 AT Two braid steel wire hose, suitable for grease applications only.
