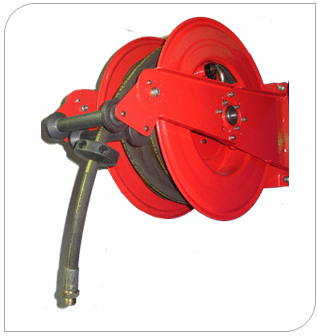

AUTO REWIND HOSE REEL SERIES 6000

SERIES 6000 (NEW SERIES ) This series hose reel are mainly used for low, medium and high pressure application. The standard low pressure hose is for air or water, Medium pressure for air water or oil and the high Pressure for grease..




MODELS WITH HOSE     HOSE CAPACITY MODEL WITHOUT HOSE
MODEL WEIGHT PRESSURE  I.D O.D.   LENGTH  MODEL        PRESSURE
  kg  psi  / bar  in   /   mm mm ft /  mtr   psi  /  bar
LOW PRESSURE HOSE REELS                            Maximum Temperature 150*F(65*C) - Reel 3/8" BSP &  NPT (Female)
SP5310 OLP   275 19 1/2"    13 21.0 82 25 SP5305 OLP 500 35
SP5320 OLP   275 19 3/4"    19  31.0 50 15 SP5315 OLP 500 35
SP5330 OLP   275 19 1"       26 31.0 26 8 SP5325 OLP 500 35
Low pressure reel furnished standard with pvc hose
MEDIUM PRESSURE OIL REESL       Maximum Temperature 212*F(100*C) - Reel 3/8" OR 1/2" BSP &  NPT (Femal)
SP5340 OMP   400 28 1/2"    13 21.0 50 15 SP5335 OMP 1000 70
SP5350 OMP   400 28 1/2"    13 21.0 65 20 SP5345 OMP 1000 70
SP5360 OMP   400 28 1/2"    13 21.0 75 23 SP5355 OMP 1000 70
SP5470 OMP   400 28 3/4"    19 31.0 33 10 SP5465 OMP 1000 70
SP5480 OMP   400 28 3/4"    19 21.0 50 15 SP5475 OMP 1000 70
SP5490 OMP   400 28 1"       26 21.0 20 8 SP5485 OMP 1000 70
Medium pressure reels furnished with SAE 100 R6 AT one synthetic textile braid.
HIGH PRESSURE GREASE REELS       Maximum Temperature 212*F(100*C) - Reel 3/8" OR 1/2" BSP &  NPT (Femal)
SP5500 OHP   5800 400 1/4"     6 13.4 65 20 SP5495 OHP 7250 500
SP5510 OHP   5800 400 1/4"     6 14.4 75 23 SP5505 OHP 7250 500
SP5520 OHP   4750 355 3/8"     10 17.4 65 20 SP5515 OHP 7250 500
SP5530 OHP   4750 355 3/8"    10 17.4 75 23 SP5525 OHP 7250 500
High pressure reels furnished standard with SAE 100 R2 AT Two braid steel wire hose, suitable for grease applications only.
